Nome da marca: Nenhum
Origem: CN (Origem)
Battery Type: LiFePO4
Model Number: SMS-215kWh
Brand Name: SMSENERGY
Place of Origin: Guangdong, China
Dimension (L*W*H): 1150*2450*1275mm
Weight: 2100kg, 2100kg
Communication Port: RS485, CAN, LAN
Protection Class: IP55
Grid connection: Off grid

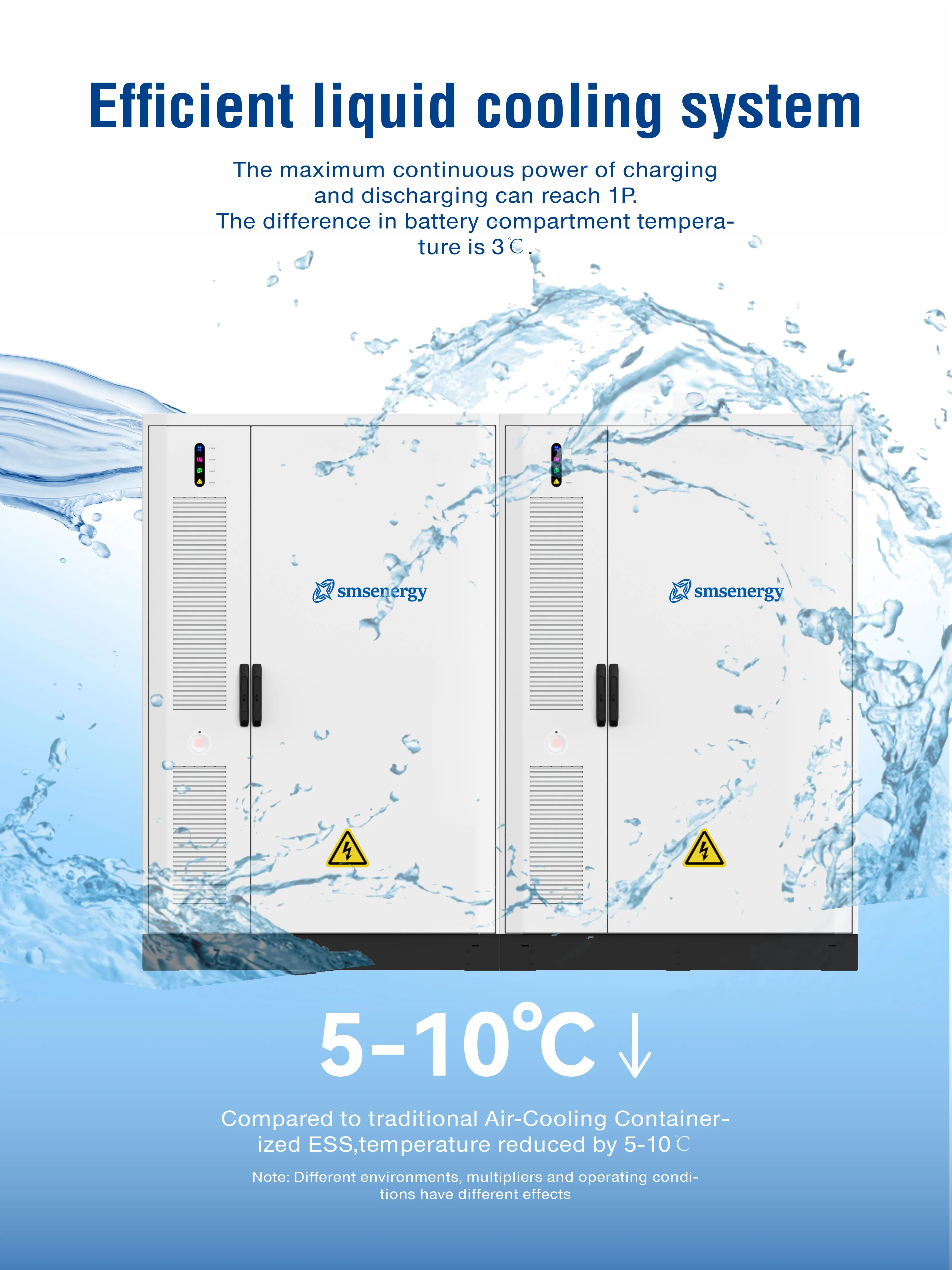

Cooling: Liquid Cooling

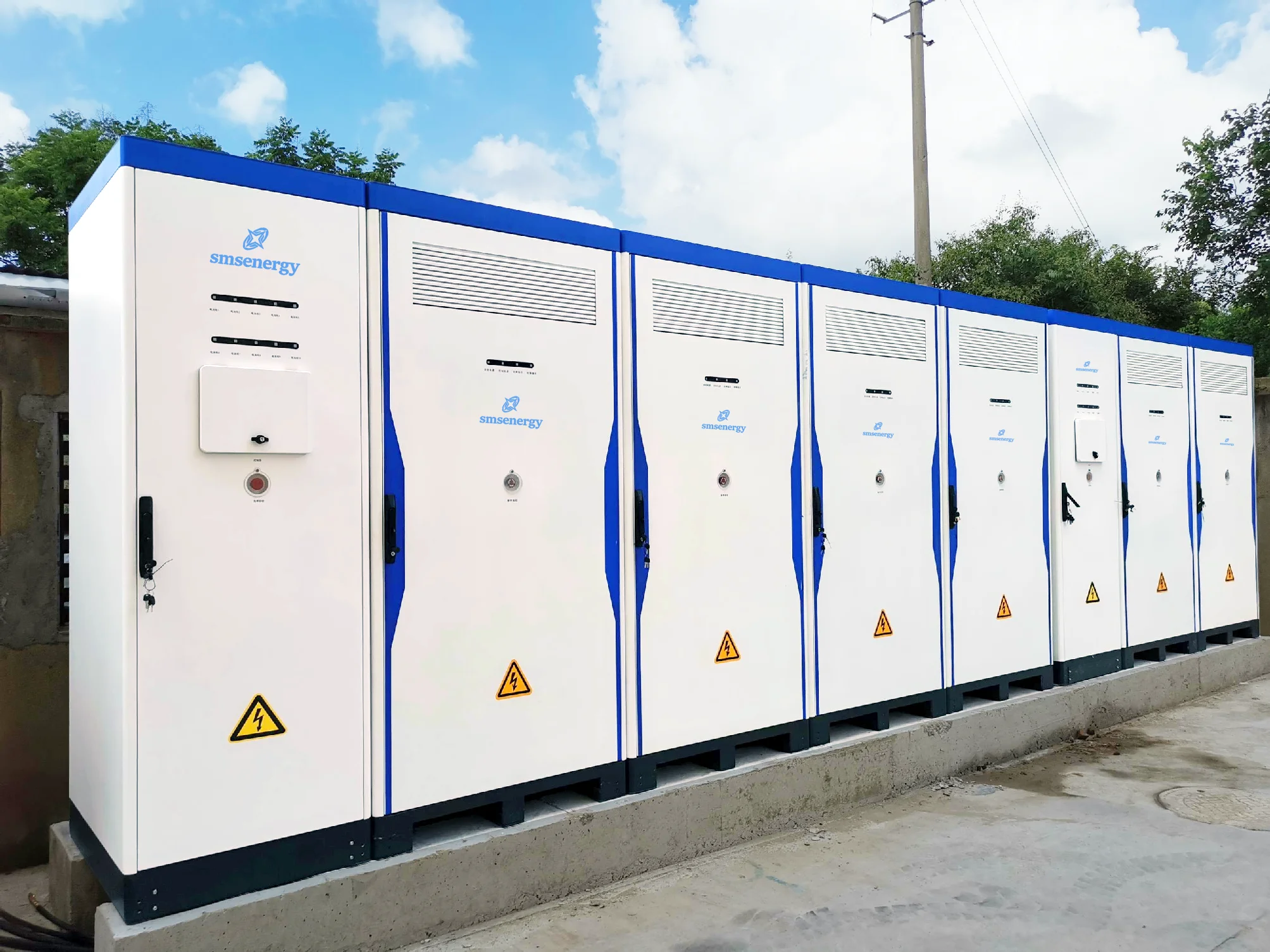

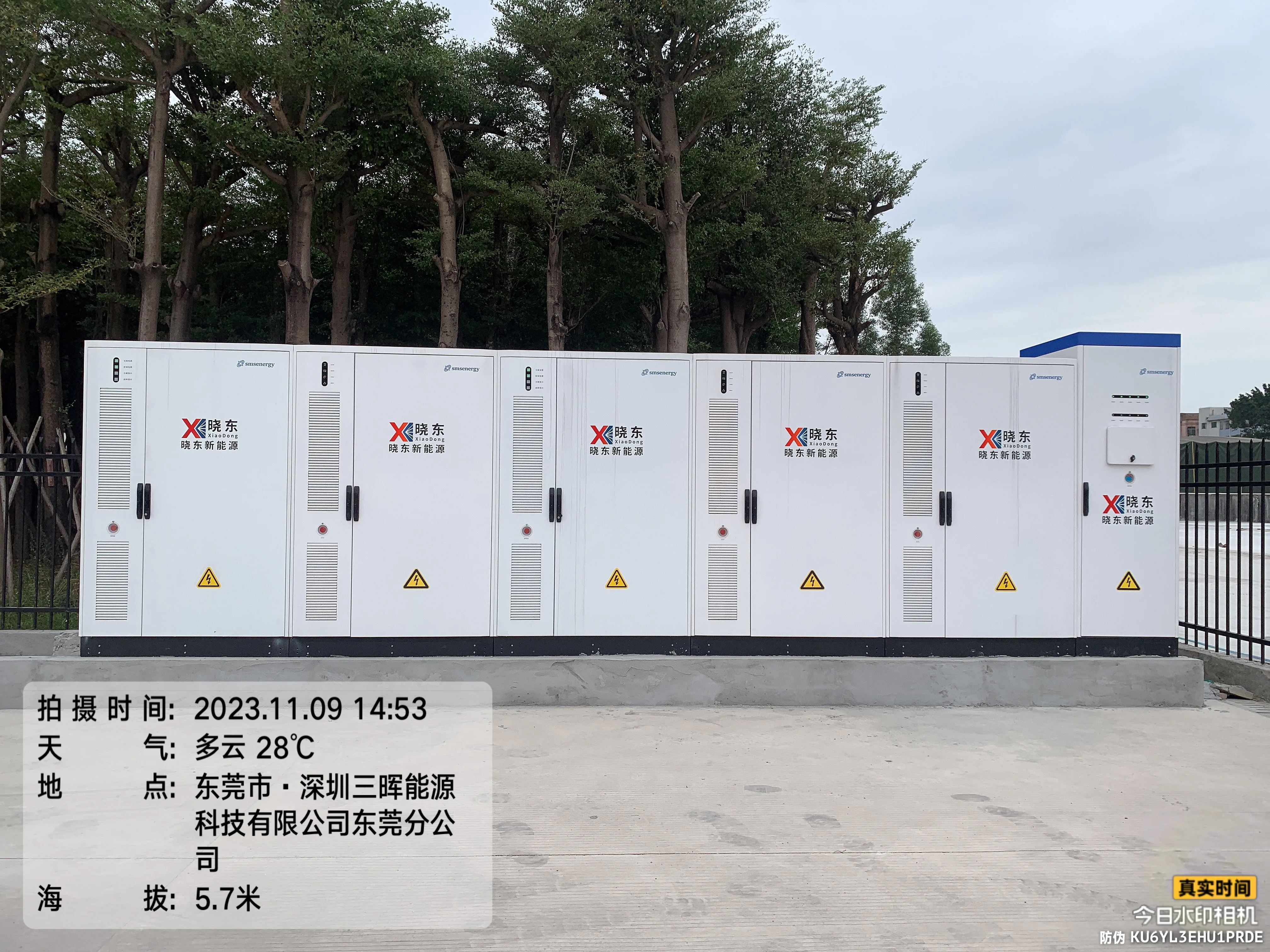

Product name: 100KW 215KWh Liquid Cooling Bess
Battery cell: Grade A 3.2V 314Ah LiFePO4 Cell
Cycle life: 12000 Cycles
Nominal Voltage: 600V-1500V
Nominal Capacity: 215KWh
Certificate: CE RoHS UN38.3 MSDS
Warranty: 5 Years
Size: 1150*2450*1275mm
BMS: Smart BMS System
|
Serial No.
|
Name
|
Parameters
|
||
|
AC parameter
|
||||
|
1
|
Grid power voltage
|
400V, 3W+PE
|
||
|
2
|
Rated AC power
|
100kW
|
||
|
3
|
Rated AC current
|
152A
|
||
|
4
|
Rated grid frequency
|
50/60Hz
|
||
|
5
|
Power factor adjustable range
|
-1~+1
|
||
|
6
|
THDi (rated power)
|
＜3%
|
||
|
DC parameter
|
||||
|
7
|
Battery Type
|
LFP
|
||
|
8
|
Battery power
|
215kWh
|
||
|
9
|
DC rated voltage
|
716V
|
||
|
10
|
DC voltage range
|
604~818V
|
||
|
11
|
Rated charge and discharge rate
|
0.5CP
|
||
|
12
|
DC maximum current
|
166A
|
||
|
System parameter
|
||||
|
13
|
Isolation method
|
non-isolated
|
||
|
14
|
Dimensions (W*H*D)
|
1150*2450*1275mm
|
||
|
15
|
Weight
|
2100kg
|
||
|
16
|
System life span
|
6000 cycles @25℃, 0.5CP
|
||
|
17
|
Communication Interface
|
RS485, CAN, LAN
|
||
|
18
|
Operating temperature
|
-40℃ ~ 50℃
|
||
|
19
|
Permissible Humidity Range
|
0~95% (no condensation)
|
||
|
20
|
Altitude
|
5000m(>2000m needs de-rating)
|
||
|
21
|
Battery temperature control method
|
Industrial Liquid Cooling
|
||
|
22
|
Fire Fighting System
|
Gas fire extinguishing system
|
||
|
23
|
IP protection level
|
IP55
|
||
|
24
|
Anti-corrosion grade
|
C4 (up to C5 optional)
|
||
|

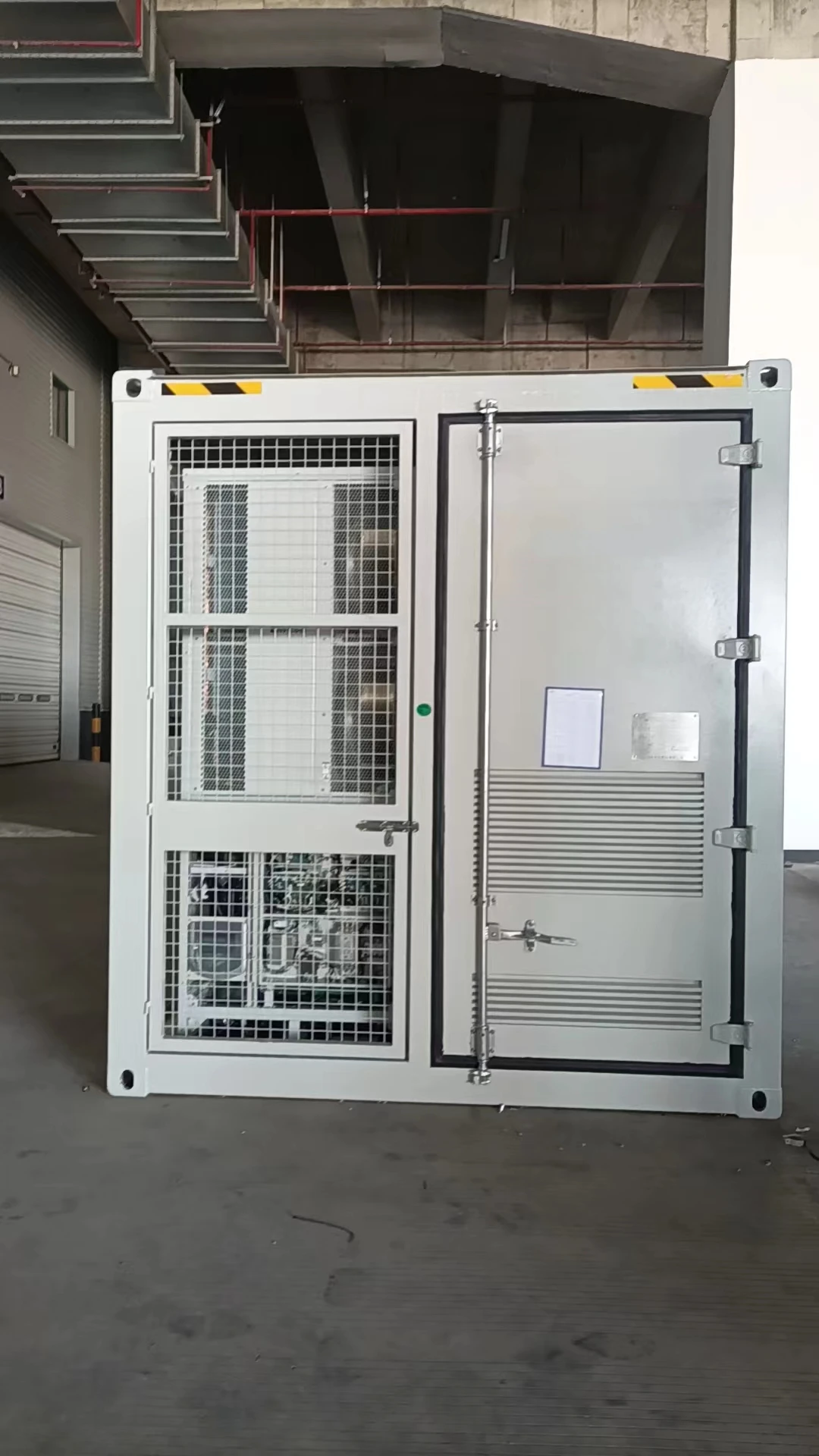

Serial No.
|
Name
|
Parameters
|
|
1
|
Rated AC voltage
|
400V，3W+PE
|
|
2
|
Rated AC power
|
500kW
|
|
3
|
Rated AC current
|
5*152A
|
|
4
|
Number of input channels of the battery cabinet
|
5 Channel
|
|
5
|
Auxiliary electric power
|
≤500W
|
|
6
|
Short circuit protection
|
yes
|
|
7
|
Surge protection
|
yes
|
|
8
|
Communication method
|
RS485, CAN, LAN
|
|
9
|
Operating temperature
|
-40℃ ~ 50℃
|
|
10
|
Permissible Humidity Range
|
0~95% (no condensation)
|
|
11
|
Operating altitude
|
5000m (>2000m needs de-rating)
|
|
12
|
Dimensions (W*H*D)
|
750*2450*1050mm
|
|
13
|
Weight
|
500kg
|
|
14
|
Protection degree
|
IP55
|
