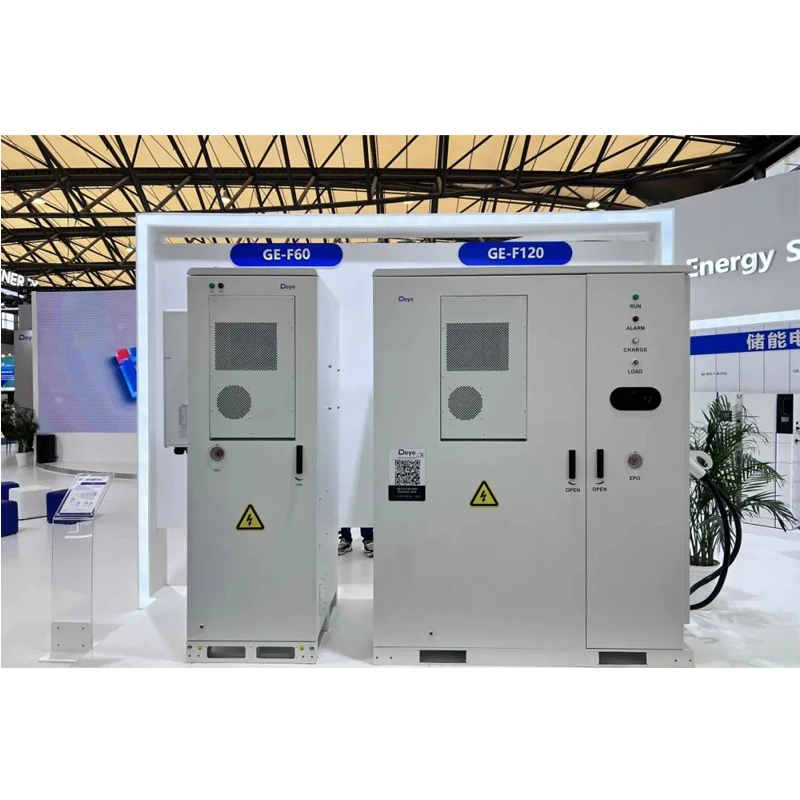

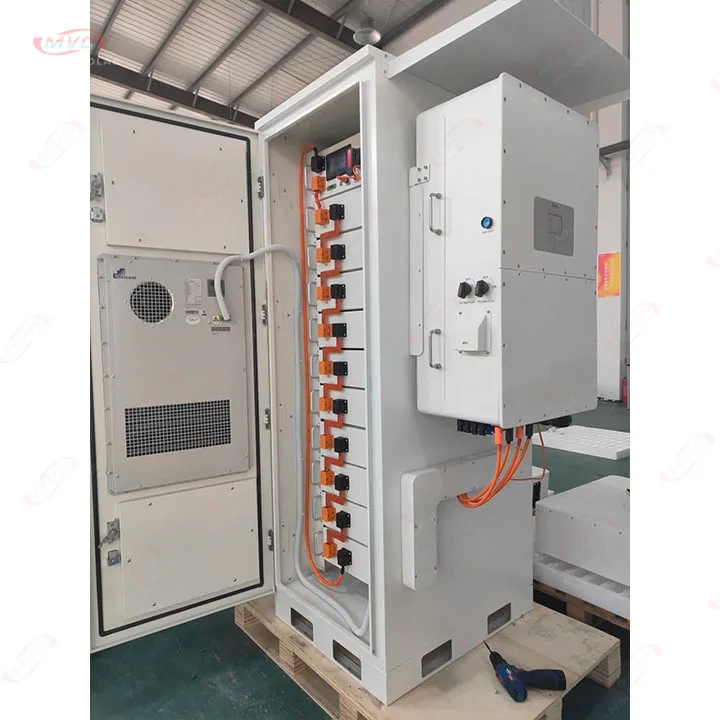

鈼� The Deye GE-F60 is an advanced solar pv batteries solution designed for large-scale renewable energy storage and backup power
applications.
applications.
Nome da marca: Nenhum
Origem: CN (Origem)
Químico Hign-em causa: Nenhum
Battery Type: Lithium Ion
Model Number: Deye GE-F60-EU
Place of Origin: Anhui
Dimension (L*W*H): 735*1050*2250
Weight: 1015(battery)+80(inverter)
Communication Port: rs485, CAN, WIFE, ETH
Protection Class: IP65, ip55

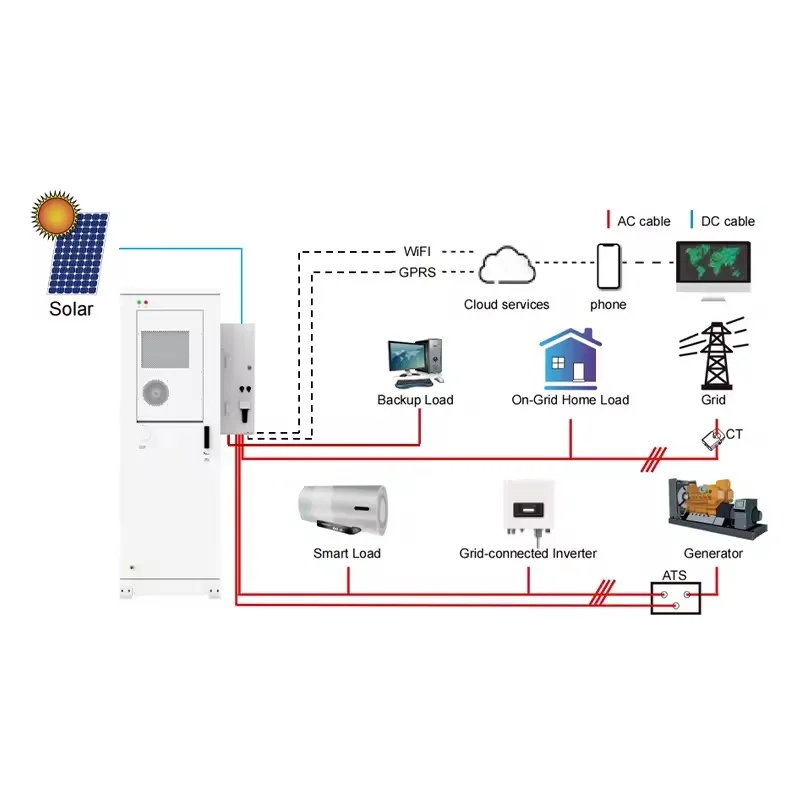

Grid connection: Off grid, Hybrid grid
Cooling: Air Cooling
Type: All-in-one
Warranty: 10 YEARS
Cooling Concept: Smart Cooling
System Certification: UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109
Installation Style: Floor-Mounted
Battery Module Nominal Voltage (V): 51.2
Battery Module Energy (kWh): 5.12
|
Model
|
|
GE-F60
|
|
|
|
|||||
|
System Specification
|
|
|
|
|
|
|||||
|
Nominal Output Power/UPS Power (W)
|
|
50000
|
|
|
|
|||||
|
AC Output Frequency and Voltage
|
|
50/60Hz; 3L/N/PE 220/380, 230/400Vac
|
|
|
|
|||||
|
Grid Type
|
|
Three phase
|
|
|
|
|||||
|
Energy Configuration (kWh)
|
|
61.4
|
|
|
|
|||||
|
Dimension (W x D x H,mm)
|
|
735x1050x2250 (no contain inverter)
|
|
|
|
|||||
|
Weight Appr. (kg)
|
|
950 (no contain inverter)
|
|
|
|
|||||
|
AC Output Rated Current (A)
|
|
75.8
|
|
|
|
|||||
|
Battery Operating Voltage (V)
|
|
500 ~ 700
|
|
|
|
|||||
|
Battery Chemistry
|
|
LiFePO4
|
|
|
|
|||||
|
IP Rating of Enclosure
|
|
IP55
|
|
|
|
|||||
|
System Certification
|
|
UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109
|
|
|
|
|||||
|
Installation Style
|
|
Floor-Mounted
|
|
|
|
|||||
|
Warranty
|
|
10 years
|
|
|
|
|||||
|
Inverter Technical Specification
|
|
|
|
|
|
|||||
|
Max. PV Input Power (W)
|
|
65000
|
|
|
|
|||||
|
Max. PV Input Current (A)
|
|
36+36+36+36
|
|
|
|
|||||
|
Rated PV Input Voltage (Vdc)
|
|
600
|
|
|
|
|||||
|
Start Up DC Voltage (Vdc)
|
|
180
|
|
|
|
|||||
|
MPPT Voltage Range (Vdc)
|
|
150-850
|
|
|
|
|||||
|
Max. PV Short-circuit Current (A)
|
|
44+44+44+44
|
|
|
|
|||||
|
Number of MPPT
|
|
4
|
|
|
|
|||||
|
Peak Power (off grid)
|
|
1.5 time of rated power, 10s
|
|
|
|
|||||
|
Power Factor
|
|
0.8 leading to 0.8 lagging
|
|
|
|
|||||
|
THD
|
|
<3%
|
|
|
|
|||||
|
DC injection current (mA)
|
|
<0.5ln
|
|
|
|
|||||
|
Display
|
|
LCD
|
|
|
|
|||||
|
Operating Temperature Range (鈩�)
|
|
-40~60( >45鈩� derating)
|
|
|
|
|||||
|
Relative Humidity
|
|
15% ~ 85% (No Condensing)
|
|
|
|
|||||
|
Dimension (W x D x H, mm)
|
|
420x233x670
|
|
|
|
|||||
|
Inverter Communication
|
|
CAN, RS485, WIFI, ETH
|
|
|
|
|||||
|
Safety EMC / Standard
|
|
UL1741, FCC, IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
|
|
|
|
|||||
|
Grid Regulation
|
|
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
|
|
|
|
|||||
|
Max. Efficiency
|
|
97.6%
|
|
|
|
|||||
|
Max. charging/discharging efficiency
|
|
91%
|
|
|
|
|||||
|
Battery Technical Specification
|
|
|
|
|
|
|||||
|
Battery Module Nominal Voltage (V)
|
|
51.2
|
|
|
|
|||||
|
Battery Module Energy (kWh)
|
|
5.12
|
|
|
|
|||||
|
BMS Communication
|
|
CAN
|
|
|
|
|||||
|
Battery Module Dimension(W*D*H mm)
|
|
440x570x133
|
|
|
|
|||||
|
Battery Module Weight (kg)
|
|
44
|
|
|
|
|||||
|
Operating Temperature Range
|
|
Charge: 0锝�55鈩� / Discharge: -20鈩冿綖55鈩�
|
|
|
|
|||||
|
Cycle Life
|
|
≥6000(@25鈩�±2鈩�,0.5C/0.5C,70%EOL)
|
|
|
|
|||||
|
Battery Module Certification
|
|
CE, IEC62619, IEC62040, UN38.3
|
|
|
|
|||||
