Name: 300KW Hv Large Commercial Utility Inverters Hybrid Solar Inverter 300kva 400kva 500kva With RS485 USB WiFi GPRS CAN
SKU: 154620181
Price: 832871.84 BRL
Availability: InStock

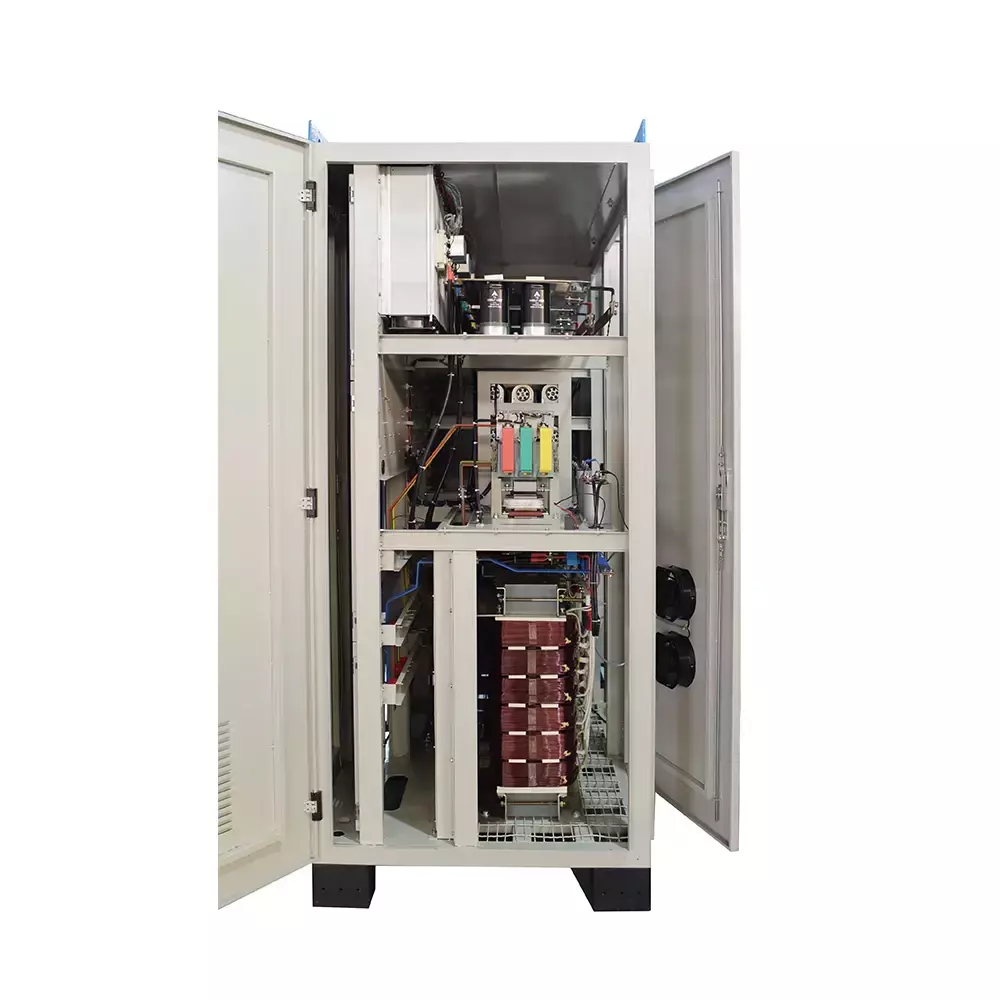

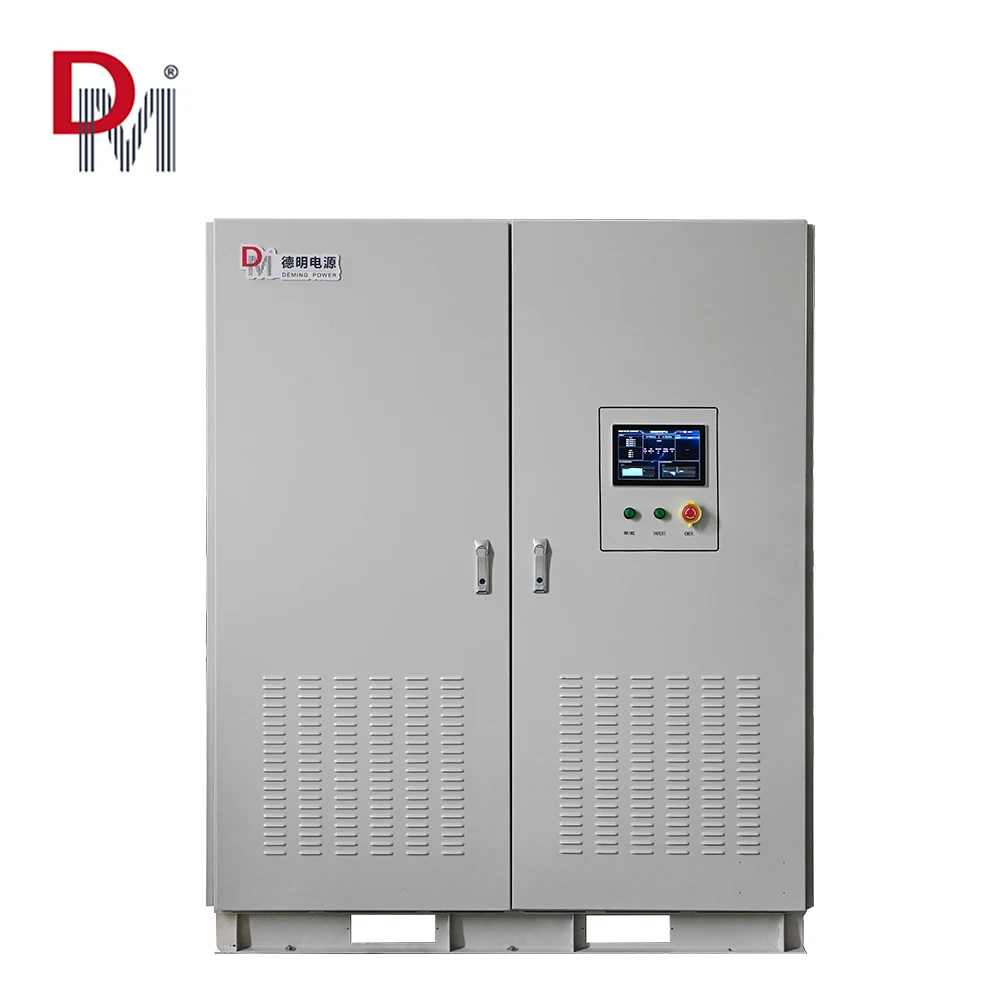

300KW Hv Large Commercial Utility Inverters Hybrid Solar Inverter 300kva 400kva 500kva With RS485 USB WiFi GPRS CAN

300KW Hv Large Commercial Utility Inverters Hybrid Solar Inverter 300kva 400kva 500kva With RS485 USB WiFi GPRS CAN - comprar online

300KW Hv Large Commercial Utility Inverters Hybrid Solar Inverter 300kva 400kva 500kva With RS485 USB WiFi GPRS CAN na internet

300KW Hv Large Commercial Utility Inverters Hybrid Solar Inverter 300kva 400kva 500kva With RS485 USB WiFi GPRS CAN - AIO

300KW Hv Large Commercial Utility Inverters Hybrid Solar Inverter 300kva 400kva 500kva With RS485 USB WiFi GPRS CAN - loja online

Imagem do 300KW Hv Large Commercial Utility Inverters Hybrid Solar Inverter 300kva 400kva 500kva With RS485 USB WiFi GPRS CAN

R$832.871,84

Entregas para o CEP:

Alterar CEP

Meios de envio

Calcular

Não sei meu CEP

Descrição

Nome da marca: Nenhum

Origem: CN (Origem)

Químico Hign-em causa: Nenhum

Place of Origin: Shandong, China

Model Number: SP440-300K

Input Voltage: 440V

Output Voltage: 440V

Output Current: 393A

Output Frequency: 50hz/60hz

Output Type: Single Phase, DUAL Camera, Triple

Size: 2010*1060*2100mm

Type: DC/AC Inverters

Inverter Efficiency: >90%

Weight: 2t

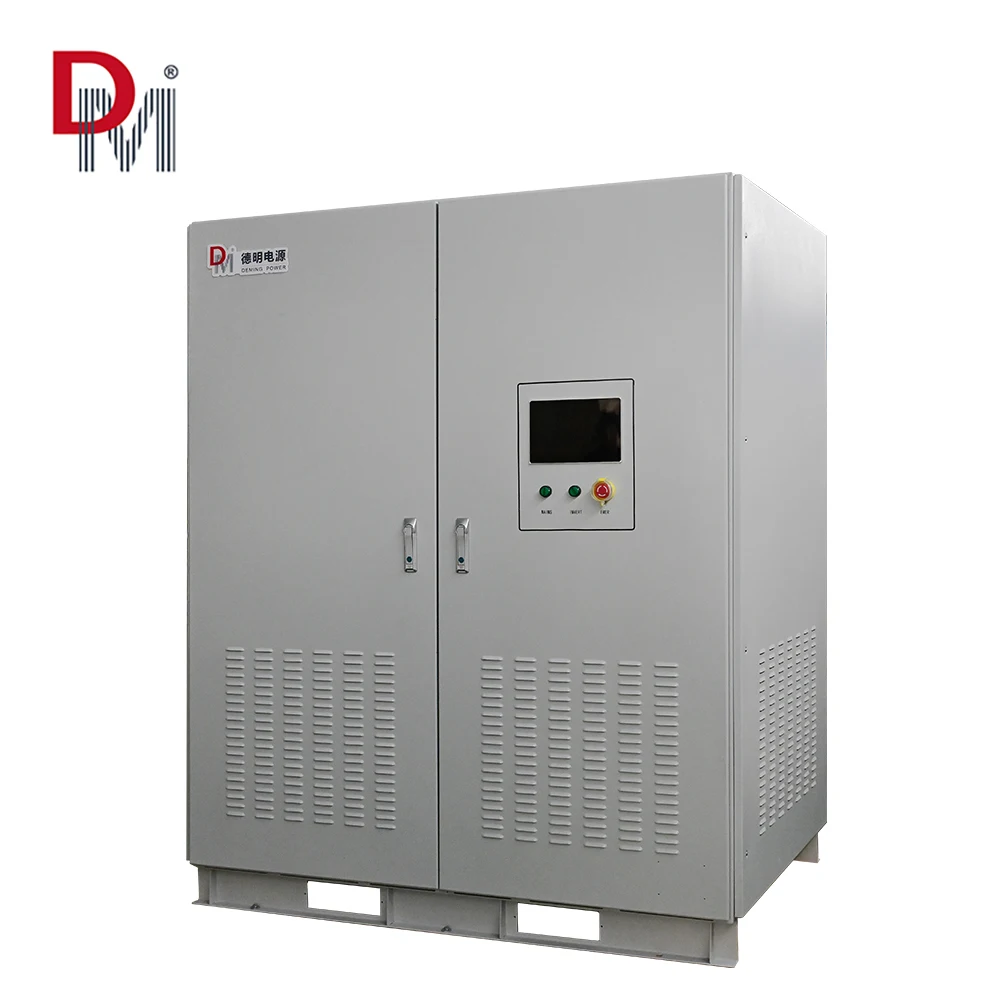

Product name: 300KW hybrid solar inverter

Application: hybrid solar inverter

Warranty: 1-5 Years

Certificate: ISO 9001/CE

Inverter type: Pure Shine Wave Solar Inverter

Output waveform: Pure Shine Wave Inverter

Display: Touch Screen

Communications: RS485/GPRS/USB/WIFI/CAN

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Violet Ms WhatsApp:+86 19898819420 Email:[email protected]

300KW Hv Large Commercial Utility Inverters Hybrid Solar Inverter 300kva 400kva 500kva With RS485 USB WiFi GPRS CAN

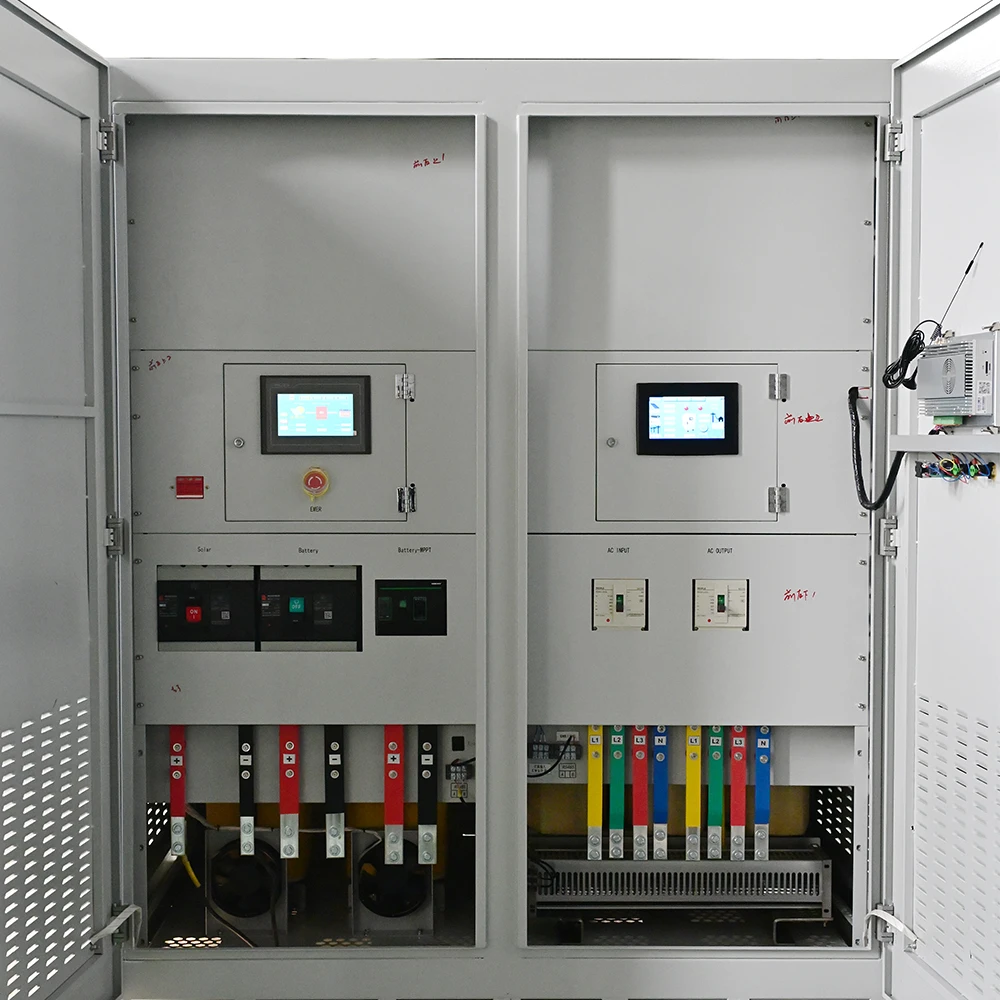

Product introduction

Function Introduction

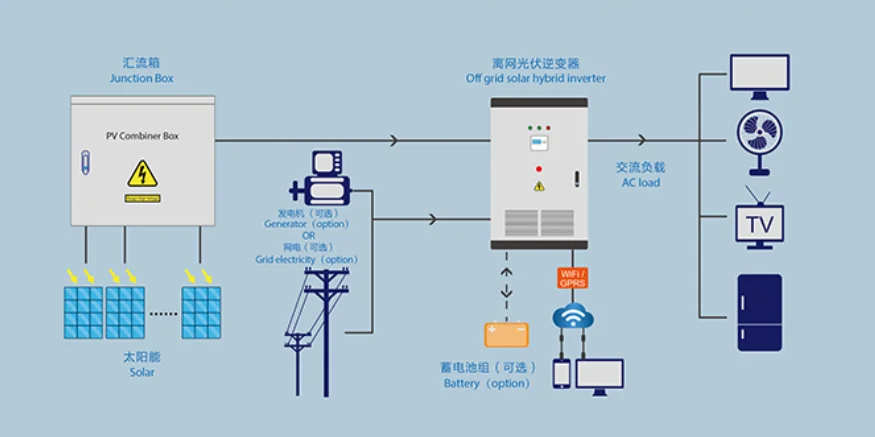

Compared with the traditional off grid inverter system, the biggest difference between the new off grid inverter system and the traditional off grid inverter system is that there is no need for batteries or a small amount of batteries, so as to reduce the initial investment cost, make full use of new energy to generate electricity, and achieve the purpose of reducing the use of grid electricity or diesel generator. The new off grid inverter system consists of solar panels, combiner box, new off grid inverter and other components.

The electric energy generated by solar panels is directly connected to the new-type off grid inverter after converging through the combiner box, and then DC is converted to AC through the new-type off grid inverter for the use of load equipment.

The diesel engine / power grid is connected through the AC input terminal of the new off grid inverter, and it will participate in the inverter after rectification. When the power supply of solar panel is insufficient, it will automatically switch and supplement, and the switching time is Oms.

In the system with a small number of batteries, some solar panels are connected to the controller to charge the batteries. The battery plays a supporting role in the switching process between solar panels and diesel generator, so as to avoid power failure of the system during the switching process.

In some application, the new off grid inverter can also be used in wind power, hydropower and other systems.

Performance Characteristics

The drive protection is Mitsubishi inner works, and the perfect drive protection circuit ensures the reliable operation of IGBT.

Fast dynamic response (Patented technology): Double closed-loop feedback circuit, internal loop current environmental protection certificate non-distorted non-linear load waveform; external loop voltage environmental protection certificate sudden load voltage drop ≤1%, reaction speed ≤ 2 m.

Reasonable combination of components, inversion efficiency ≥ 90%.

Output frequency 50/60Hz switching to meet different device power requirements, other frequencies can be customized.

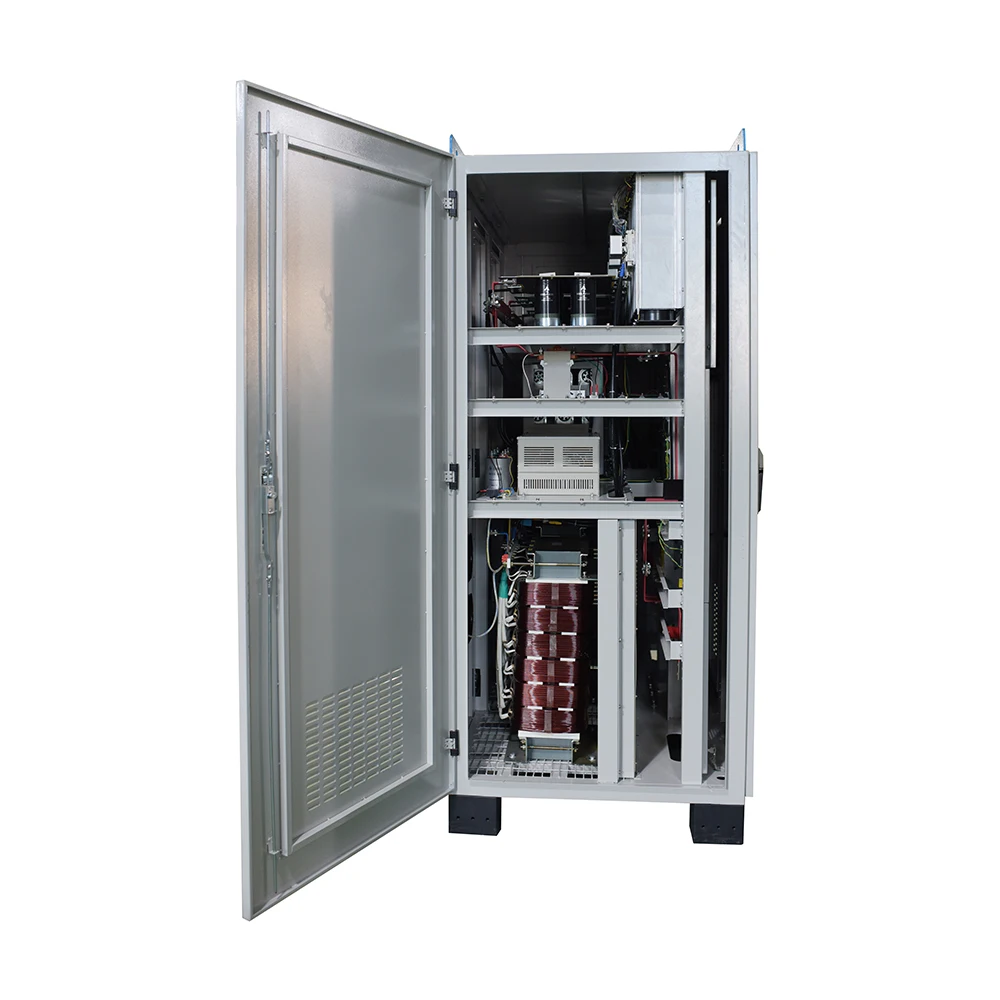

Built-in isolation transformer with pure sine wave output and resistance, induction, capacitance and mixed load.

Reasonable airway design and high heat dissipation efficiency.

Strong carrying capacity, can withstand 200% power impact for 10 seconds.

Friendly interactive interface, touch-display integration.

Display DC input voltage, AC output voltage, frequency, power, temperature, status indication and fault indication.

Digital technology design, high adjustability , DC over/under voltage, DC under voltage recovery, output over/under voltage, output overload can be set within a certain range.

Wide voltage input range, 48-800V DC input, customizable input voltage.

Full and efficient protection function, to protect against damage under any load, with input connection back protection, input over/under voltage protection, output under/voltage protection, IGBT drive protection, output over load protection, current limit protection, overheat protection, three-phase unbalance protection.

Accurate switching of solar panels, batteries and grid power to maximize energy utilization.

The generator start dry contact can start the generator in advance before the power supply is under voltage, and the start voltage can be set.

Optional: Bypass input.

Communication: RS485銆� USB銆� WiFi銆� GPRS銆� CAN. Data can be accessed to the Internet of Things, monitored remotely, and queried for historical data.

Communication protocol: Modbus RTU.

Type	SPI 220-300K	SPI 380-300K	SPI 440-300K
Solar Input
Solar power	300KWp	300KWp	300KWp
Solar panels voltage (Vmp)	450V	525V	525V
*Battery (optional)
Battery rated voltage (DC)	360V	420V	420V
Input voltage range (DC)	300-450V	350-525V	350-525V
Three-phase AC input
Allow voltage range (AC)	220V ± 15%	380V± 15%	440V±15%
Input rated current	875A	504A	437A
Transfer time	0ms
*AC bypass(optional)
Allow AC input voltage range	220V±15%	380V±15%	440V ± 15%
Input frequency accuracy	50Hz/60Hz鍦� 10%
Bypass transfer time	≤100ms(≤10ms optional)
Three-phase AC output
Rated power	300KW	300KW	300KW
AC Rated voltage	220V	380V	440V
Rated phase current	787A	453A	393A
Output voltage accuracy	380V ±1%	380V±1%	440V± 1%
Output frequency accuracy	50Hz/60Hz鍦� 0.05%
Waveform distortion (THD).	≤3%(Linear load)
Overload capacity	110%,10 minutes, 200%,10 second
Crest factor (CF)	3:1
Inverter efficiency	>90%
General parameters
Working Environment
Dielectric strength	1500VAC,1 minute
Noise (1m)	<50dB
Ambient temperature	-10鈩儈+50鈩�
Humidity	0~90%, No condensation
Altitude	<2000m Higher than 2000m rated power should Be reduced
Production function
Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection thermal protection
Size	2010mm1060mm2100mm
Weight *45	2t

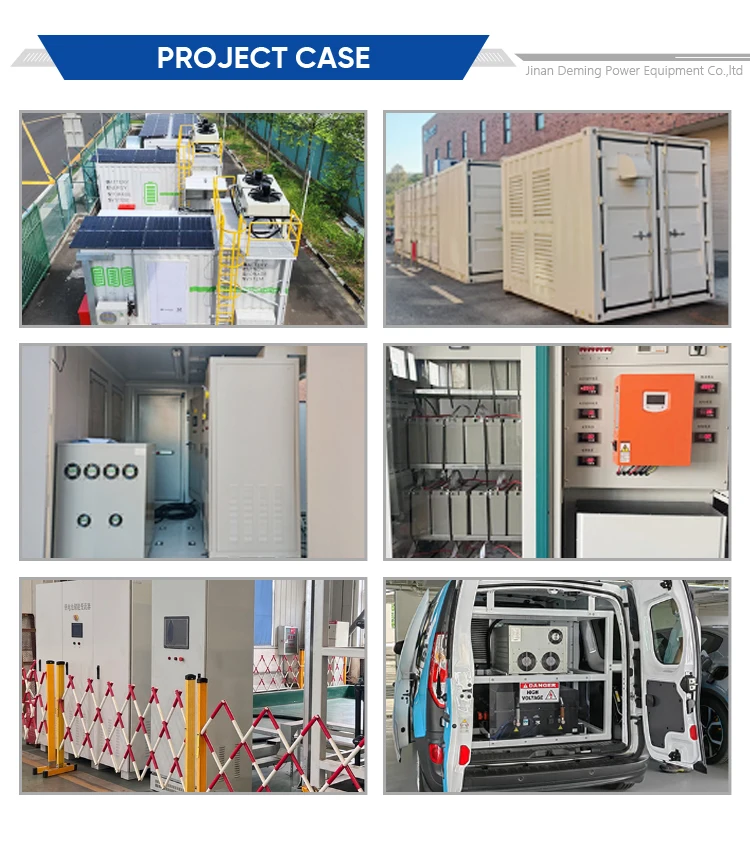

Product application scenario

BUYERS FEEDBACK

COMPANY PROFILE

The company was established in 2004 and acquired two registered trademarks of "Deming" and "Quanneng" in the same year. After five years of accumulation in 2009, the company gradually matured steadily. The company purchased factory buildings with independent property rights, and the company relocated to start a new journey. In 2012, the Ministry of Foreign Trade was established to open up markets and begin to expand foreign markets. In 2015, the company achieved rapid development, with 2 invention patents, 6 utility model patents, 1 appearance patents, obtained the "high-tech enterprise certificate" recognition, and obtained the ISO 9001 quality management system certification .In 2018, the company continued to innovate, with four invention patents, six utility model patents, and two software registration rights, and again suc-cessfully recognized high-tech enterprises .On July 10, 2019, it passed the certification of intell-ectual property management system. In 2020, three patents for invention and six patents for utility models were applied for.

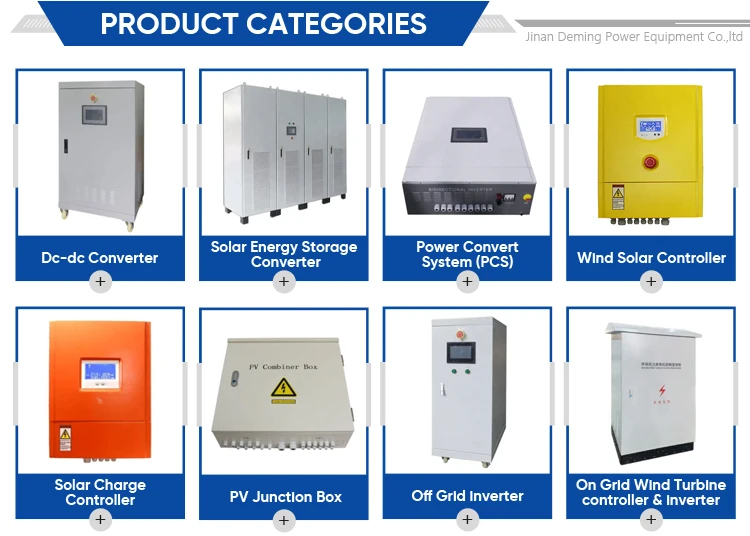

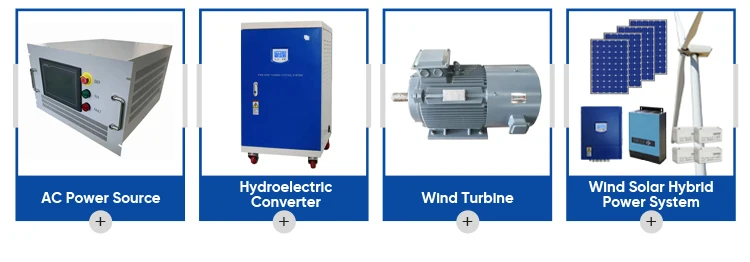

1.Our main products are off grid wind turbine controller, On grid wind turbine controller, solar charging controller, wind-light complementary controller, wind-light complementary street lamp controller, On grid inverter, off grid inverter, frequency converter, stabilized frequency power supply, etc. 2.With first-class manufacturing technology, advanced technology and equipment, strong techn-ical force, perfect testing means and personnel management, Deming has carried out 17 research and development projects in the last three years, completed 16 transformation of scientific and technological achievements, and invested all by itself to implement the transformation, averaging 5.3 transformation of scientific and technological achievements each year. 3.Deming takes technological innovation as the basis of enterprise development, annual R&D cost is not less than 20% of sales revenue, and continuously explores advanced technologies in the field of new energy power sources, such as electromagnetic control technology for wind turbines, MPPT technology, yaw wind turbines control technology, wind and solar complementary system Internet of Things monitoring, etc. Now it has five national invention patents for core technolo-gies, twelve utility model patents, and the control technology for wind turbines has reached the advanced international level. 4.Deming has a complete product quality assurance system and 9001 certification. Perform com-prehensive quality control, rigorous test one by one, each performance is superior to the relevant national standards, all products have passed the EU CE certification. Ensure user safety and relia-ble use. Now the company's products have been the preferred supporting products for the well-known domestic manufacturers. The products export to more than 120 countries and regions, such as Germany, Japan, the United States, the United Kingdom, Canada, Australia, Egypt, Brazil, Saudi Arabia, and have established a good image in the domestic and foreign markets. 5.We are based on the market, pay attention to customers, provide high-quality products, adhere to technological progress, scientific management and standardized operation are the key to our success. We will jointly meet the challenges of the new century, shape a good image outside, and construct the blueprint of a modern enterprise in an all-round and three-dimensional way.

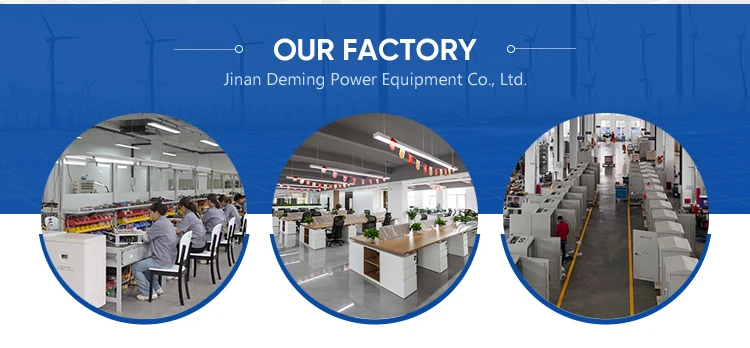

OUR FACTORY

FAQ

1.Can you provide OEM service? Yes, we can.

2.Can you design the complete solar wind power system? Yes, we can design the system according to your requirements.

3.Factory or trading company? We are a manufacturer of wind turbine solar controllers and various inverters.

4.Is customization acceptable? Yes, we can make products according to customers' requirements.

5.May I visit the factory? Yes, welcome to our factory.

6.Can you provide samples? Yes, we can provide samples for testing.

Due to webpage restrictions, we cannot store too many videos. If you are interested in our product, you can contact me for more detailed product videos and factory production videos. WhatsApp:+86 19898819420 Email: [email protected]
